| Maximum ambient temperature |
T125 °C |
|---|---|
| Rated voltage current |
16(3) A / 250 V NC --- 6(1) A / 250 V NO |
| Field of intervention |
0,5 - 8 bar |
| Built in accordance with the standard |
EN 60730-2-6 |
| Minimum current |
200 mA std - 10 mA contatti dorati |
| ENEC (EN 60730) approved - cycle number |
100.000 (16 A NC o 6 A NO) ------500.000 (10 A NC) |
| Ty 98 A |

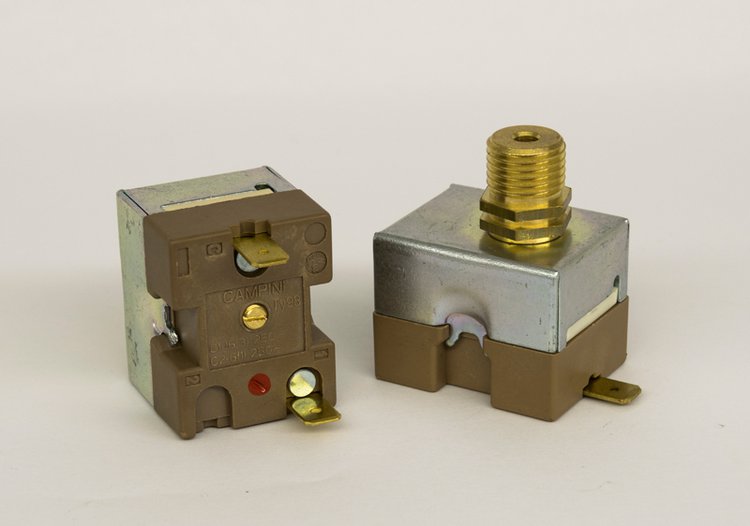

Single-pole pressure switch SPST contact normally closed (NC) |
|---|---|
| Ty 98 B |
Single-pole pressure switch SPDT contact |
| Ty 98 C |
Single-pole pressure switch SPST contact normally open (NO) |
| Heating systems | |
|---|---|
| Other application areas | |
| Small home appliances |
