Ty 95

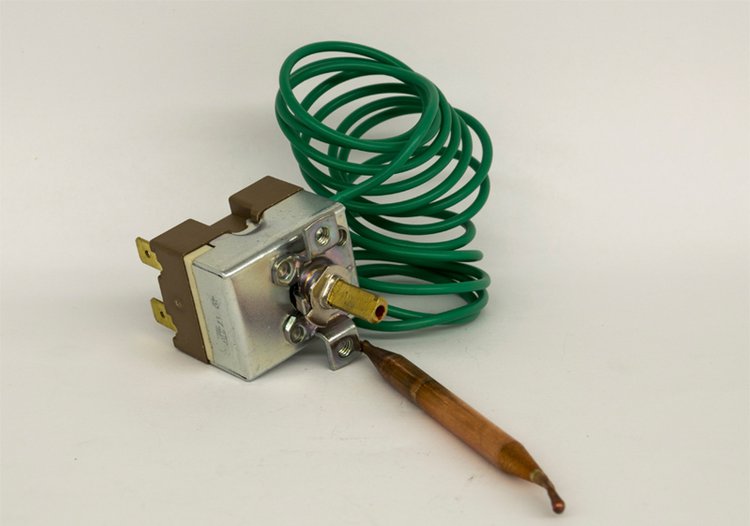

Capillary thermoregulator with double insulation

Termostato a bulbo Ty 95

Altri documenti

Condizioni privacy

Download


Adjustment range

-35°C - 320°C

Maximum ambient temperature

T150

Rated voltage current

16(3) A / 250 V NC - 6(1) A /250 V NO

Built in accordance with the standard

EN 60730-2-9

Minimum current

200 mA std - 10 mA contatti dorati

ENEC (EN 60730) approved - cycle number

100.000

Ty 95 A

Capillary thermoregulator contact SPST normally closed (NC)

Ty 95 B

Capillary thermoregulator contact SPDTv

Ty 95 C

Capillary thermoregulator contact SPST normally open (NO)
