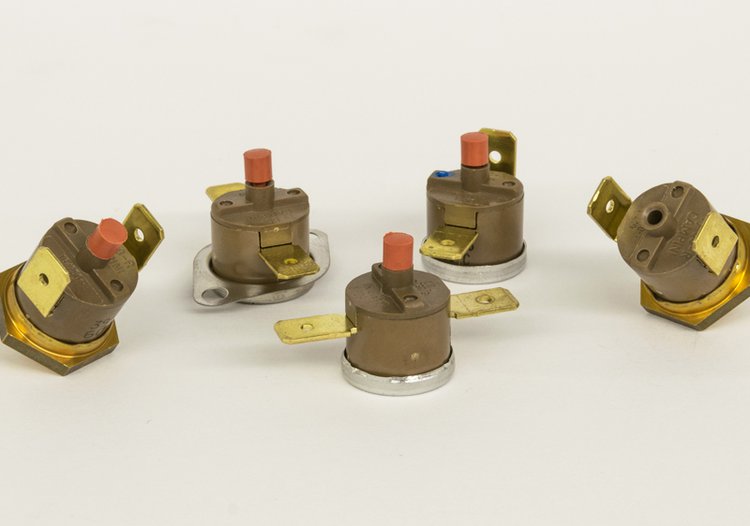

Ty 60 R

Single-pole bimetallic disc thermostat manual reset

Adjustment range

45° C - 200° C

Maximum ambient temperature


Rated voltage current

16 A / 250 V

Built in accordance with the standard

EN 60730-2-9

Minimum current

200 mA std - 10 mA contatti dorati

ENEC (EN 60730) approved - cycle number


The snap-on temperature can vary according to the applications. For use wherever the temperature of a metal surface is to be controlled. Automatic reset possible with T < -20°C. Upon request, with extra price, a version with gold-plated contacts, silver-plated or tinned Fast-on for tipical contact resistance to 5mOhm. Colour temperature code also available.
