Adjustment range |
5° C - 35° C |
---|---|
Rated voltage current |
12 (1,5) A / 250 V NC ---- 6 (1,5) A / 250 V NO |
Power supply |
220 V - 240 V |
Max working temperature |
50° C |
Built in accordance with the standard |
EN 60730-2-9 |

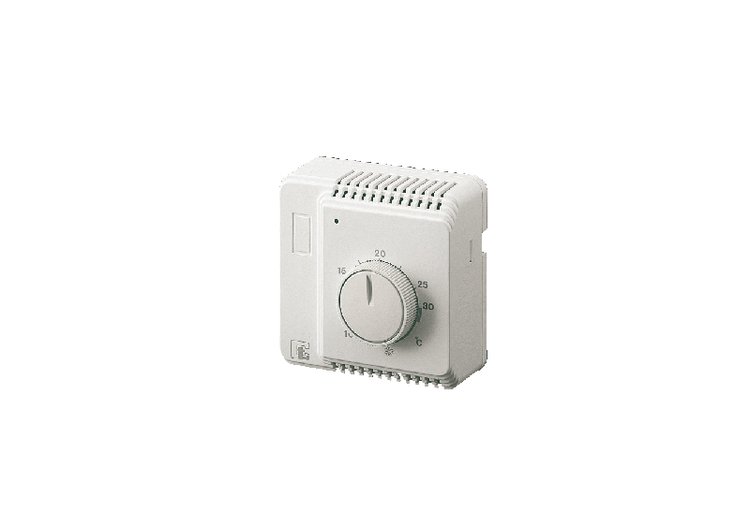

Ty 90 M1 |
With NC contact (SPST). |
---|---|
Ty 90 M2 |
With NC contact 10(1,5)A/250V (SPST) and ON-OFF switch. |
Ty 90 M3 |
With NO contact (SPDT). |
Ty 90 M4 |
With NO contact 6(1)A/250V (SPDT) and ON-OFF switch. |
Ty 90 M7 |
ON-OFF contact (SPST) and Winter/ Summer change-over switch. |
Heating systems |
---|
