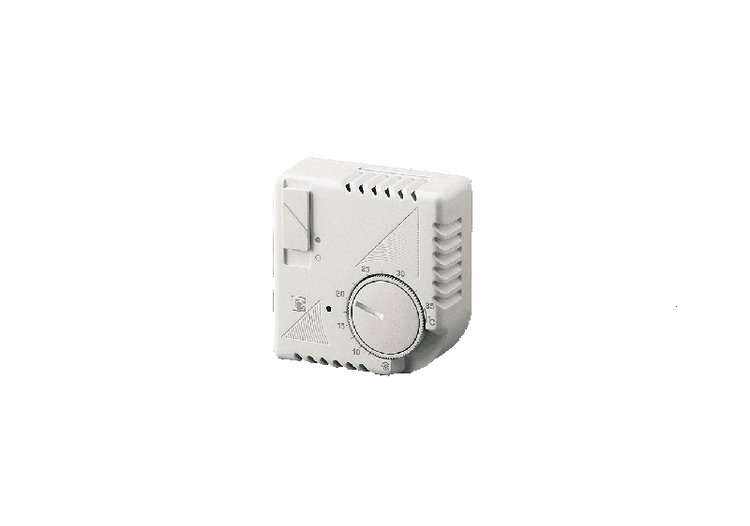

Ty 90 B

Bimetallic room thermostat with accelerating resistance connected in series to the thermistor. The action of both the accelerating resistence and the thermistor produces a more accurate adjustment according to the set-point so as to obtain a better room comfort

Adjustment range

5° C - 35° C

Rated voltage current

10 (2) A / 250 V NC --3 (1) A / 250 V NO

Power supply

220 V - 240 V

Max working temperature

50° C

Built in accordance with the standard

EN 60730-2-9

Ty 90 B1

With NC contact (SPST).

Ty 90 B2

With NC contact (SPST) and ON-OFF switch.

Ty 90 B3

With NO contact (SPDT).

Ty 90 B4

With NO contact (SPDT) and ON-OFF switch.

Ty 90 B7

ON-OFF contact (SPST) and Winter/Summer
