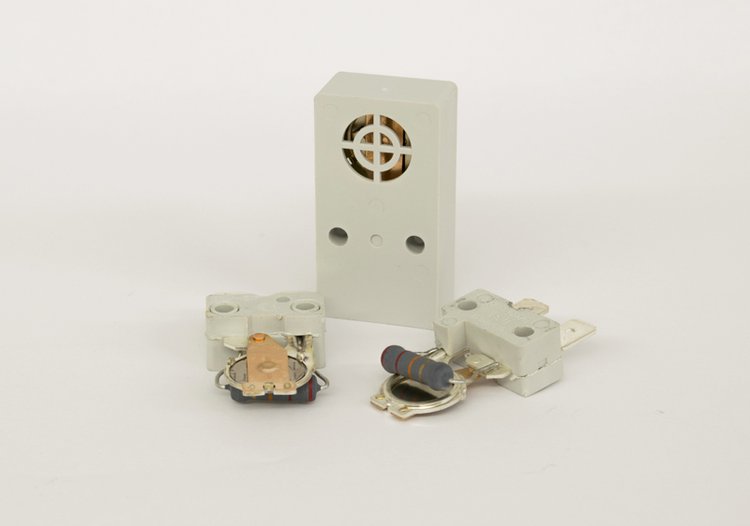

Ty 63 S

Single-pole bimetallic disc thermostat with snap-action contact and maintenance resistance

Adjustment range

50° C - 150° C

Maximum ambient temperature

T180

Rated voltage current

16 A / 250 V

Built in accordance with the standard

EN 60730-2-9

With current on circuit more or equal to 12A, max. temperature for use:

150° C

ENEC (EN 60730) approved - cycle number

3.000

Small home appliances

The differential and the intervention temperature can vary according to the applications and/or due to Joule effect caused by the current flowing into the electric circuit. For use when the air temperature is to be controlled. Colour temperature code also available.
