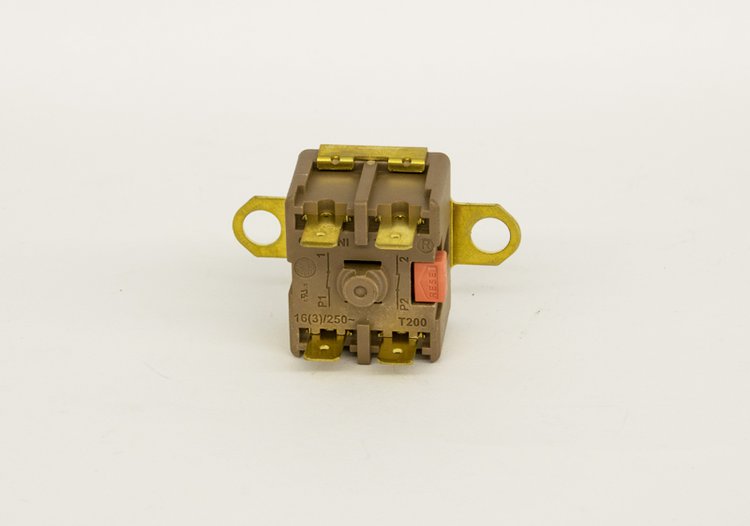

Ty 62 R

Double-pole bimetallic disc thermostat manual reset with snap-action contact

Adjustment range

40° C - 180° C

Maximum ambient temperature

T200

Rated voltage current

16(3) A / 250 V

Built in accordance with the standard

EN 60730-2-9

ENEC (EN 60730) approved - cycle number

1.000

Other application areas
Large home appliances
Heating systems

The intervention temperature can vary according to the applications. For use wherever the temperature of a metal surface is to be controlled. The electric circuit is resettable only manually.
