Ty 53

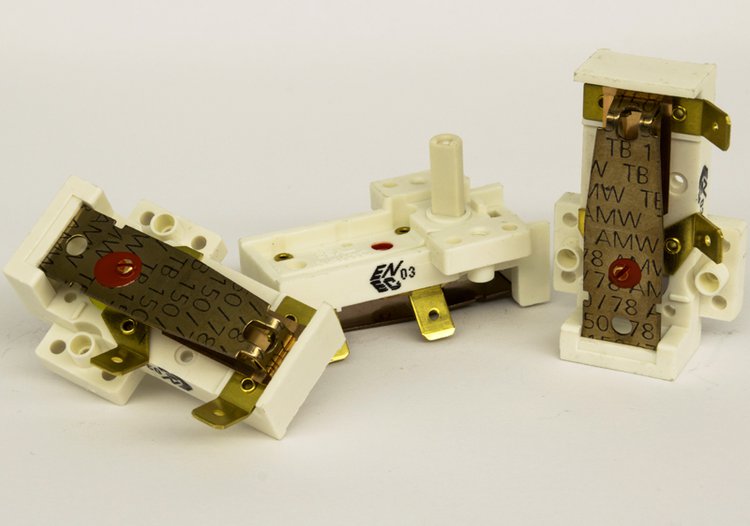

Single-pole bimetallic thermoregulators

Adjustment range

6°C-35°C Perno Giallo - 6°C-45°C Perno Bianco - 6°C-55°C Perno Marrone - 6°C-70°C Perno Grigio

Maximum ambient temperature

T90

Rated voltage current

16(2,5) A / 250 V NC - 3(1) A / 250 V NO

Built in accordance with the standard

EN 60730-2-9

Tollerance at min. operating temperature

+/- 4K

Differential (to the thermostat) changeable according to the application

2K - 6K

ENEC (EN 60730) approved - cycle number

200.000

Ty 53

The differential and the intervention temperature can vary according to the applications. For use wherever the temperature of the air is to be controlled.

Ty 53 R

Thermoregulator with accelerating resistance. Differential 1 - 3K (Max 45°C).

Ty 53 RT

Thermoregulator with accelerating resistance and thermistor. Differential 1 - 2K (Max. 45°).

Small home appliances
