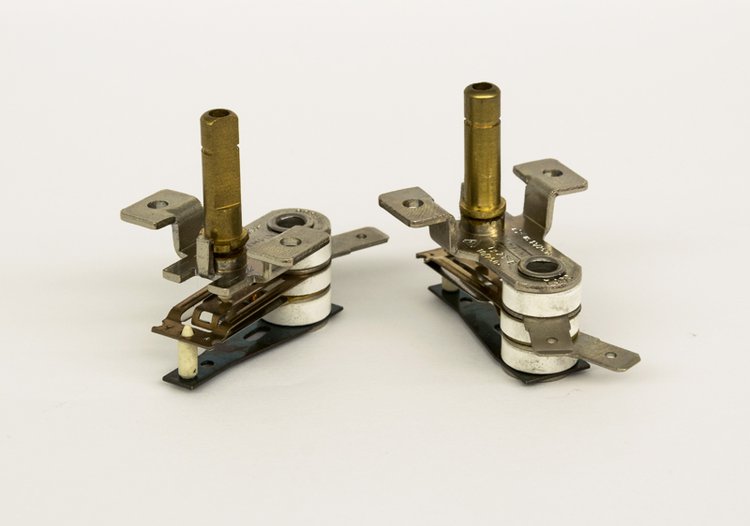

Ty 23 E

Single-pole bimetallic thermoregulator

Adjustment range

0° C - 260° C

Maximum ambient temperature

T300

Rated voltage current

10 A / 250 V

Tolerance on max temperature

+/- 10K -- +/- 15K

Built in accordance with the standard

EN 60730-2-9

Angle of hinge rotation

300° circa approx.

ENEC (EN 60730) approved - cycle number

100.000

Small home appliances

Adjusting pivot available in several lenghts. The differential and the intervention temperature can vary according to the applications. Controls the air temperature.
