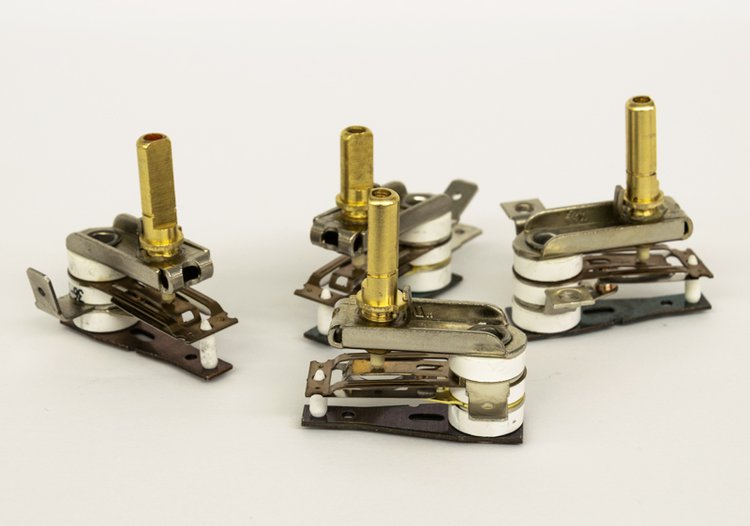

Ty 23 A-B-C

Single-pole bimetallic thermostats and thermoregulators

Adjustment range

0° C - 260° C

Maximum ambient temperature

T300

Rated voltage current

10 A / 250 V

Tolerance on max temperature

+/- 10K -- +/- 15K

Built in accordance with the standard

EN 60730-2-9

Angle of hinge rotation

300° circa approx.

ENEC (EN 60730) approved - cycle number

100.000

Ty 23 A

Adjusting pivot available on several lengths. The differential and the intervention temperature can vary according to the applications. For use wherever the temperature of a metal surface is to be controlled. With flat shaftholder.

Ty 23 B

Adjusting pivot available on several lengths. The differential and the intervention temperature can vary according to the applications. For use wherever the temperature of a metal surface is to be controlled. With reinforced shaftholder plate.

Ty 23 C

The differential can vary according to the applications. For use wherever the temperature of a metal surface is to be controlled.

Small home appliances
Large home appliances
