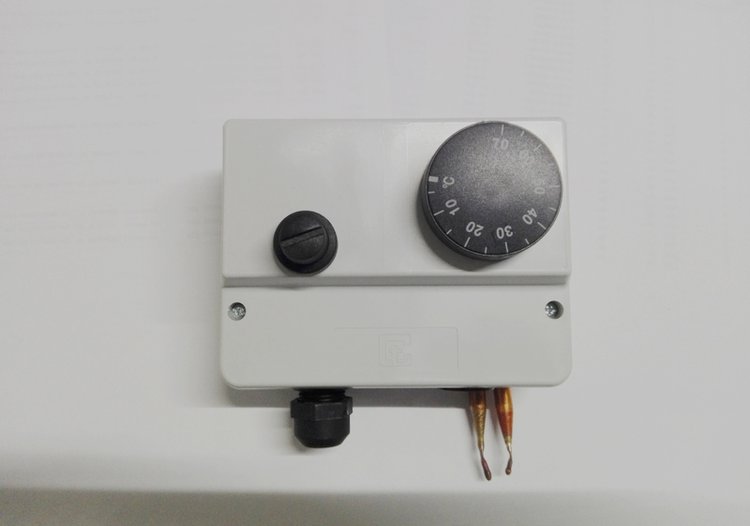

TS 95H30

Immersion double thermostat with external adjustment and manual reset temperature limiter with failsafe feature

Adjustment range

0° C / 60° C ----- 0° C / 90° C ------ 30° C / 120° C

Maximum ambient temperature

T90

Rated voltage current

Reg. 16(3) A / 250 V NC ---- 6(1) A / 250 V NO ****** Sic. 16(3) A / 250 V NC

Work range

0° C / 100° C

Differential

2 - 5 K

Heating systems
Other application areas

Suitable for applications, where direct fitting is required by means of a pocket. Internal device: Capillary thermoregulator and limiter thermostat. Also available with 125 or 250 mm ventilated tube for hot air generators. Special version on request.
