Adjustment range |
-35° C / +35° C ----- 5° C / 60° C |
---|---|
Maximum ambient temperature |
T70 |
Rated voltage current |
16(3) A / 250 V NC --- 6(1) A / 250 V NO |
Differential |
1 - 2 K |
Protection level |
IP 55 |

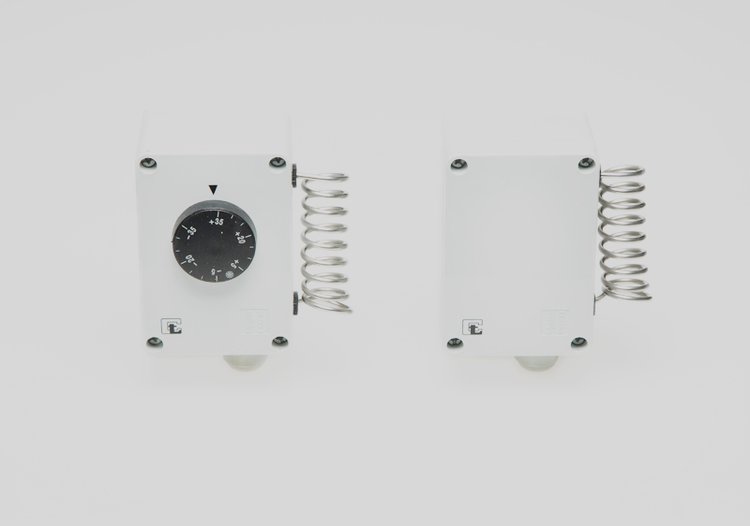

TS 9501 |
External adjustment by knob. Sensor made of stainless steel spiral. Internal adjustment device: capillary thermoregulator. Also available with 125 or 250 mm ventilated tube for hot air generators. Special version on request. |
---|---|
TS 9502 |
Internal adjustment by means of a screwdriver. Sensor made of stainless steel spiral. Internal adjustment device: capillary thermoregulator. Also available with 125 or 250 mm ventilated tube for hot air generators. Special version on request. |
Heating systems | |
---|---|
Other application areas |
